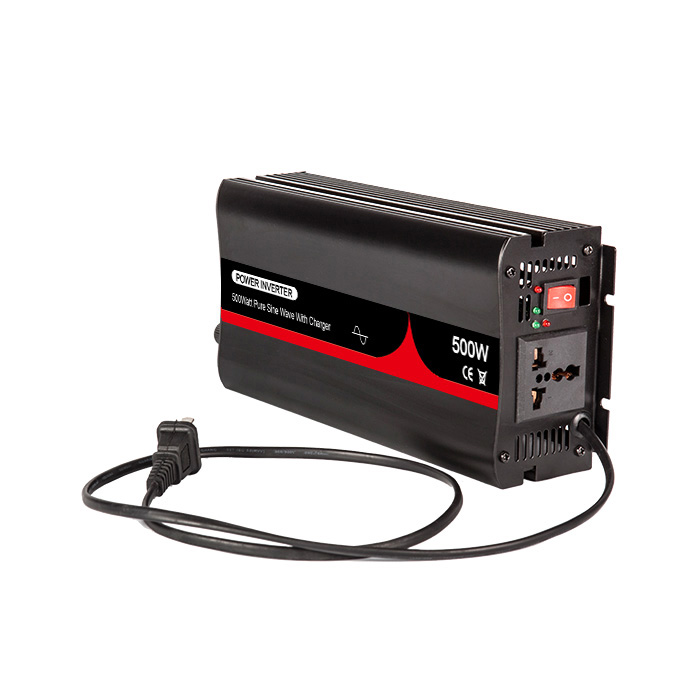

Product Features
1. Pure sine wave output waveform, strong load ability, wide application;
2. High transform efficiency, fast start, small no load current;
3. Soft start function; reduce load’s starting risk;
4. Perfect protection, with low voltage, over voltage, over load, over temperature, short circuit, input reverse connection protections and etc.;
5. Intelligent temperature control fan, when loads over 30%, it will start. Saving energy, safe and high efficiency;
6. Imported electronic Components; built-in fuse, safe and reliable;
7. Three-stage intelligent charging, effectively protection of the battery.
| Model | BTP-500-121 | BTP-500-241 | BTP-500-122 | BTP-500-242 |
| Continuous Output Power | 500W | 500W | 500W | 500W |
| Peak Power | 1000W (<5ms) | |||
| DC Input Voltage | 12V | 24V | 12V | 24V |
| AC Output Voltage | 110VAC±10% | 220VAC±5% | ||
| No-load Current | ＜0.52A(DC13V) | ＜0.32A(DC26V) | ＜0.52A(DC13V) | ＜0.32A(DC26V) |
| AC Output Frequency | 50HZ±1%/60HZ±1% | |||
| AC Output Waveform | Pure Sine Wave | |||
| Waveform Distortion | THD<3%(Linear load) | |||
| Efficiency | ＞86%(DC13V) | ＞88%(DC26V) | ＞86%(DC13V) | ＞88%(DC26V) |
| DC Input Voltage Range | 11V～15V | 22V～30V | 11V～15V | 22V～30V |
| Low Voltage Alarm | 10.5±0.3V | 21±0.6V | 10.5±0.3V | 21±0.6V |
| Low Voltage Shutdown | 9.5±0.2V | 19±0.3V | 9.5±0.2V | 19±0.3V |
| Over Voltage Protection | 16±0.5V | 31±1V | 16±0.5V | 31±1V |
| Low Voltage Recovery | 11.8±0.3V | 23.6±0.4V | 11.8±0.3V | 23.6±0.4V |
| Over Voltage Recovery | 15.7±0.3V | 31.8±0.4V | 15.7±0.3V | 31.8±0.4V |
| Over Load Protection | 120%～125% | |||
| Charging Current | 4A | 2A | 4A | 2A |
| Charging Maximum Voltage | 14.7V | 29.4V | 14.7V | 29.4V |
| Charging Mode | Connected with mains supply, constant current,constant voltage, floating charge | |||
|
Protective Function |
Low voltage: LED red light, Buzzer alarm, automatic recovery | |||
| Over voltage: LED red light, automatic recovery | ||||
| Over load: LED red light, automatic shut down, need restart | ||||
| Over temperature: LED red light, Buzzer alarm, automatic recovery | ||||
| Short circuit (within 2s): automatic recovery | ||||
| Input reverse connection: fuse burn-out | ||||
| Working Temp. | -10°C-40°C | |||
| Storage Temp. | -30°C-70°C | |||
| Humidity | 20%～90%RH Non-condensing | |||
| Working Altitude | ≦3000m | |||
| Machine Size | 280*118*62mm | |||
| Net Weight | 1.8±0.1kg | |||
| Packing Size | 330*160*140mm | |||
| Gross Weight | 2.2±0.1kg | |||
